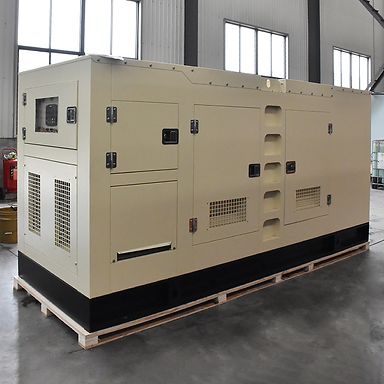

Scania 514kVA Generator
514kVASpecifications
Description
Scania diesel generator set rated at 514kVA (model code APS500S3). Engineered for prime and standby power across industrial, mining, commercial, and off-grid applications. Each set is paired with a premium alternator (Leroy-Somer, Stamford, Mecc-Alte or Marelli) and an advanced Deep Sea, Smartgen or Datakom controller delivering remote monitoring, automatic start/stop and ATS integration. Available in sound-attenuated canopy, open skid, containerised or trailer-mounted configurations, and built with powder-coated mild steel or 3CR12 stainless steel to perform in African conditions — high ambient temperatures, dust, and continuous operation.
Shipping & Delivery
514kVA – Scania Generator – APS500S3
| GENERAL DATA | ENGINE DATA | ||
| Model | APS500S3 | Brand | SCANIA |
| Prime Power kVa | 514 | Model | DC09 072A |
| Stand-by Power kVa | 565 | Type | 02-11 |
| AMPS Per Phase | 750 | Starting System | Electronic – 24V |
| PF/COS | 0.8 | Cylinder arrangement | Vertical In-line |
| Frequency | 50Hz | Number of cylinders | 5 |
| Voltage | 400V | Compression Ratio | 16.1 |
| Phases | 3PH | Fuel Type | Diesel |
| Speed | 1500RPM | Lubrication Oil | 15W40 / L-ECD grade |
| Length | 4.2m | Low pressure alert | Yes |
| Width | 1.6m | Low fuel Cut Out | Yes |
| Height | 2.2m | ||
| Weight | 3495kgs | STANDARD – CONTROL PANEL | |
| Tank Capacity | 678L | Brand | Smartgen / DSE |
| ADDITIONAL DATA | Model | 420 / 4520 | |
| Running Time | 8 Hours @ 75% | Analogue Inputs | 2 |
| Canopy Type | Mild Steel | Mains Phase Voltage | Yes |
| Noise Level | 72 – 75 DB @ 7m | Mains Line Voltage | Yes |
| Auto voltage Regulator | Yes | ||
| Fuel Cons. @ 100% Load | 103 l/ph | ALTERNATOR DATA | |
| Fuel Cons. @ 75% Load | 76 l/ph | Brand | Leroy Somer or Equiv |
| Fuel Cons. @ 50% Load | 51 l/ph | Model | LSAP 50 L1 |
| Pole Number | 4 | ||
**SPECS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
**MEASUREMENTS BASED ON ISO8528-1 STANDARDS
**ALL RATINGS AT SEA LEVEL, 25°C AMBIENT TEMP
Key Features
- Deep Sea / Smartgen / Datakom controller
- ATS (automatic transfer switch) ready
- Sound-attenuated canopy or open skid options
- Powder-coated mild steel or 3CR12 stainless build
- Remote monitoring via WiFi / GSM module
- Sub-base fuel tank 400–1,000 L options
Engineered Components & Features
Engine Brand
Premium diesel engines from Scania, Perkins, Cummins, Volvo Penta, John Deere, Baudouin & Yanmar — engineered for continuous duty, fuel efficiency, and long service life in African conditions.
Alternators
Leroy Somer, Stamford & Mecc Alte alternators with automatic voltage regulation (AVR), delivering stable, clean power for sensitive loads and industrial applications.
Controllers
Deep Sea Electronics (DSE) & SmartGen control modules with full engine protection, metering, and configurable I/O for seamless integration and reliable operation.
Canopy & Enclosure
Heavy-duty mild steel canopies with weatherproof powder-coat finish, lockable doors, and integrated fuel tanks — built for outdoor and remote-site deployment.
Sound Attenuation Level
Acoustic foam-lined enclosures with engineered air intake and exhaust paths, reducing noise to 65–75 dB @ 7m for residential, hospital, and urban environments.
Automatic Transfer Switch (ATS)
Integrated ATS panels with motorised contactors and DSE control — automatic mains failure detection and seamless transfer between grid and generator power.
Remote Monitoring
SmartGen IoT-enabled telemetry for real-time monitoring of engine parameters, fuel levels, alarms, and location — manage your fleet from anywhere via web or mobile.
